Dimension
1280 × 960 × 72 mm
Power
630-700 / 210-233 W/m²
Weight
32 kg
Operating Temp
35°C ~ 60°C

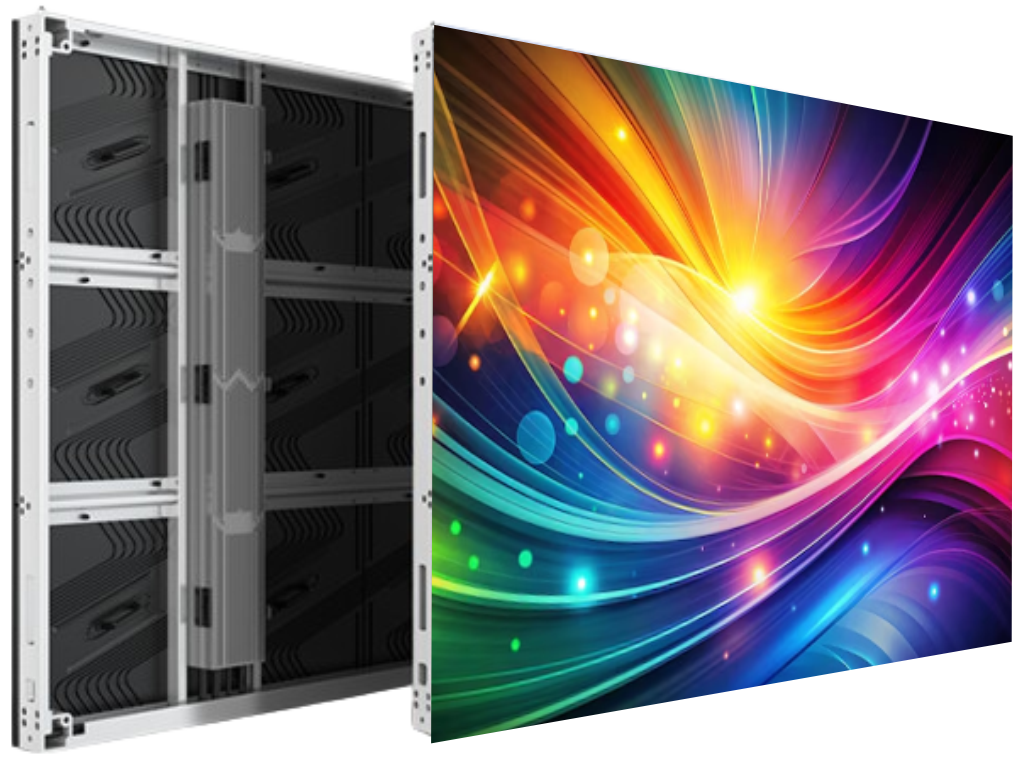

P10 Outdoor Active LED Display
Experience high-performance outdoor visuals with the P10 Outdoor LED Display, designed for vibrant and reliable large-scale viewing.
Delivering 6000-7500 nits brightness, wide 160º horizontal and 80º vertical viewing angles, and rich color performance via SMD lamps, this panel excels in visibility and clarity. With a high refresh rate (≥15000 Hz), 16-bit grayscale, and flexible control distance up to 2 km (single-mode fiber), it ensures smooth operation in demanding outdoor applications.
| Model | P10 |
| Pixel Pitch (mm) | 10 |
| LED | SMD |
| Brightness (nits) | 6000-7500 |
| Refresh rate (Hz) | ≥15000 |
| Grayscale (bit) | 16 |
| Power Consumption (max./avg.) W/m² | 630-700 / 210-233 |
| Visual Angle (H/V) | 160º/80º |
| Contrast | 12000:1 / 14000:1 |
| Panel Dimensions (W/H/D) | 1280 x 960 x 72 mm |
| Panel Resolution (pixels) | 128 x 96 |
| Panel Weight | 32kg |
| Panel Material | Aluminum |
| Ingress Protection | IP65/IP54 |
